Video Measurements (PAL Progressive)	Audio Measurements

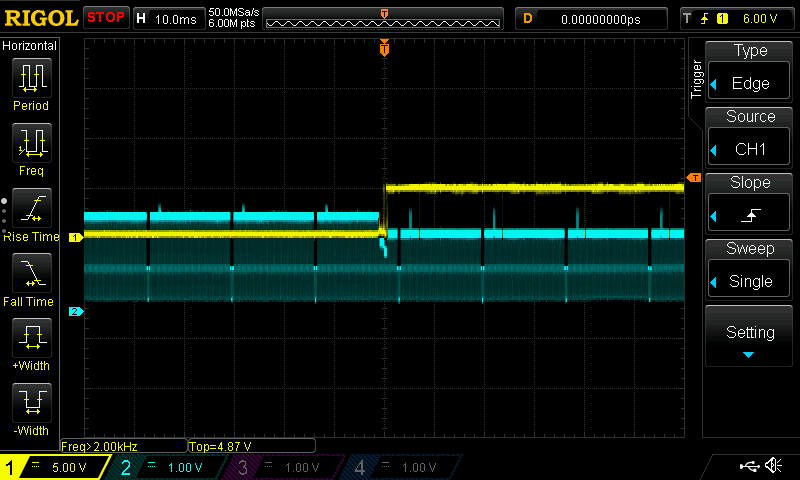

(Above) Real C64 Composite Video Latency After Joy Button Press - 0ms	* This will also be 0 latency but did not measure.

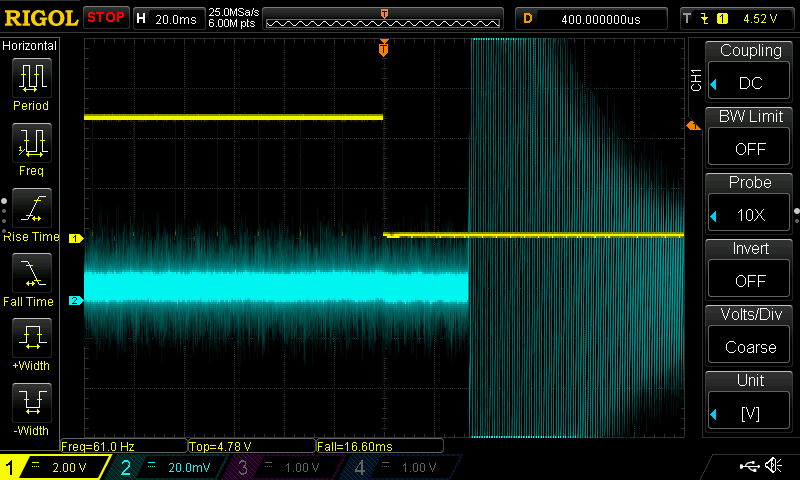

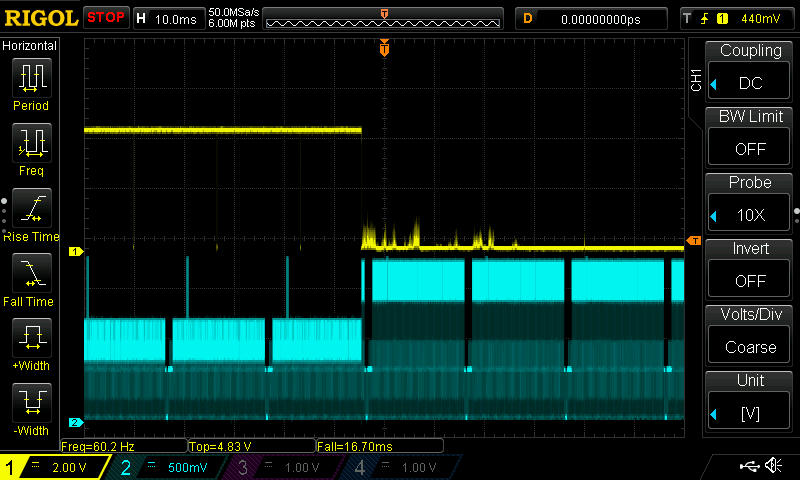

(Above) Ultimate-64 Composite Video Latency After Joy Button Press - 0ms	(Above) Ultimate-64 Analog Audio Latency (Simulated SID) After Joy Button Press - 35ms

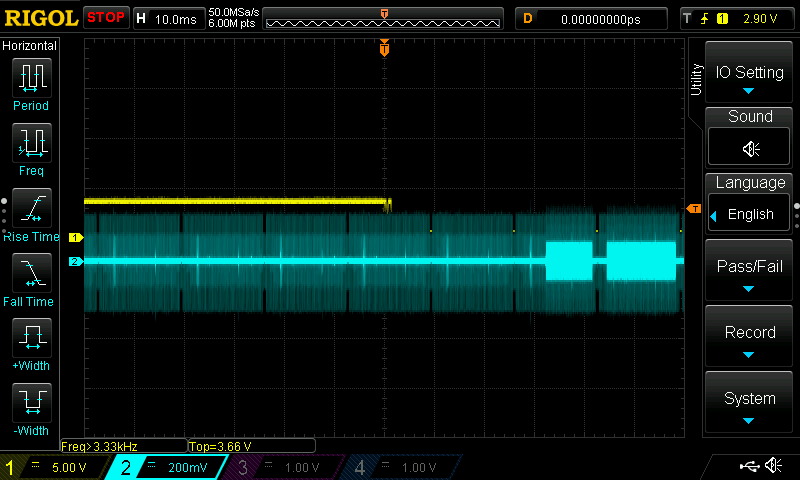

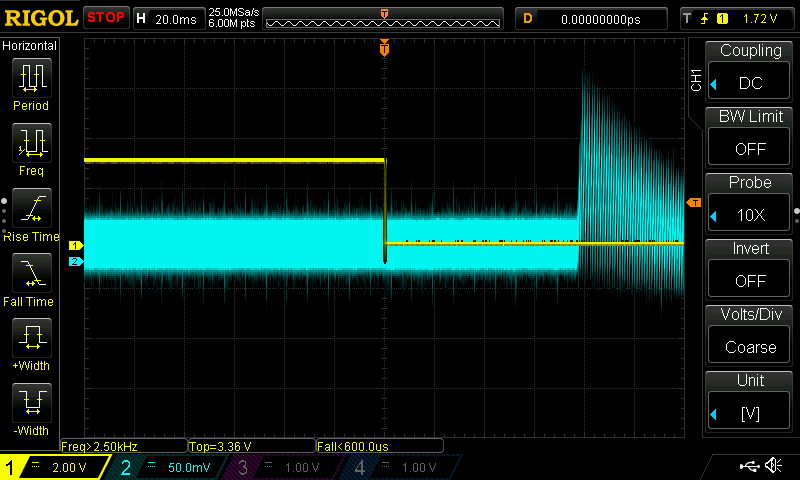

(Above) BMC64 Composite Video Latency After GPIO Joy Button Press - 2 frames worst case	(Above) BMC64 Analog Audio Latency After GPIO Joy Button Press (1) - 80ms

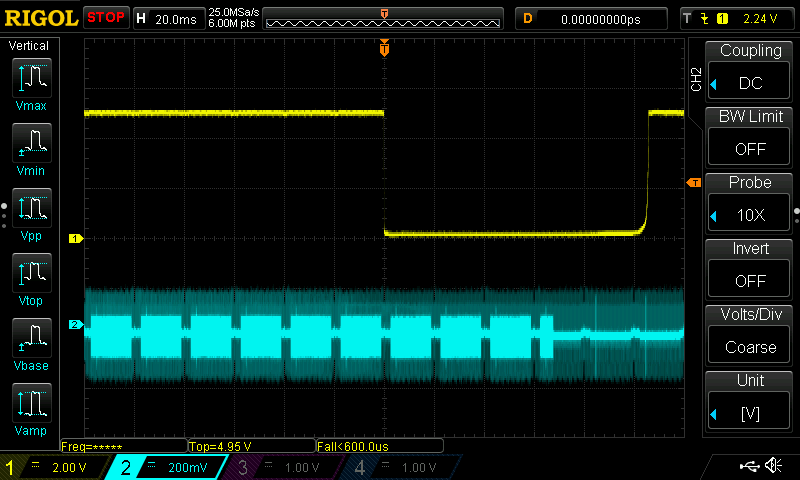

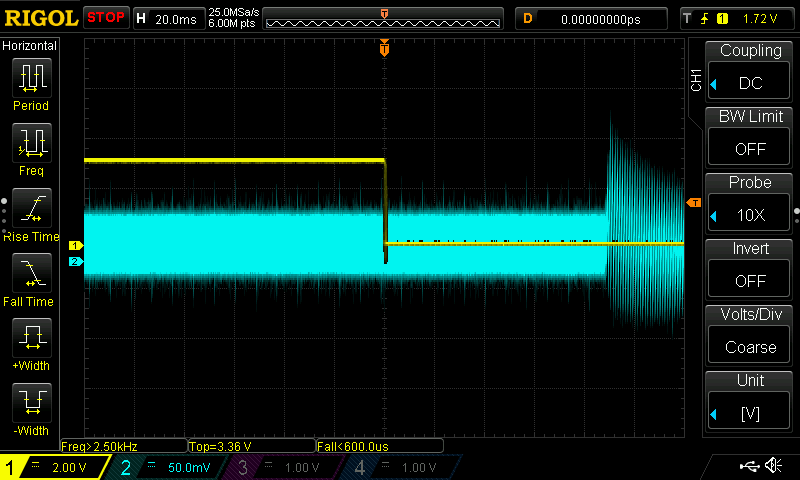

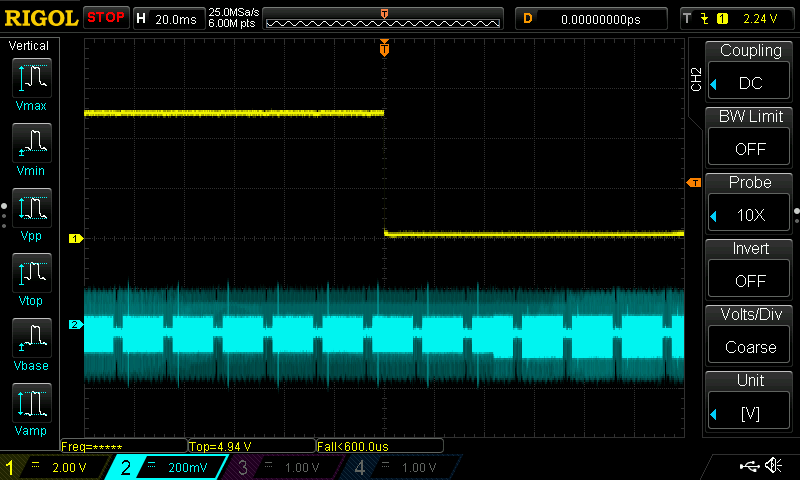

(Above) BMC64 Composite Video Latency After USB Joy Button Press - 2 frames	(Above) BMC64 Analog Audio Latency After GPIO Joy Button Press (2) - 90ms
(Above) BMC64 Composite Video Latency After USB Joy Button Press - 3 frames worst case

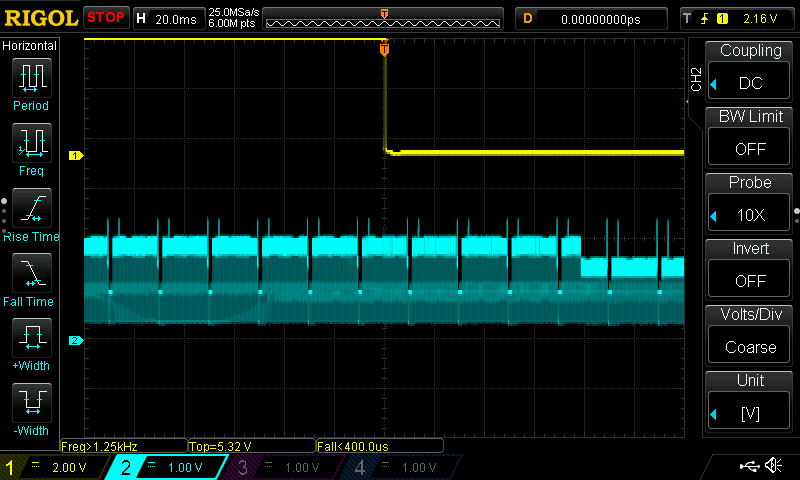

(Above) BMC64 Video Latency Using Keyrah Joy - 4 frames worst case

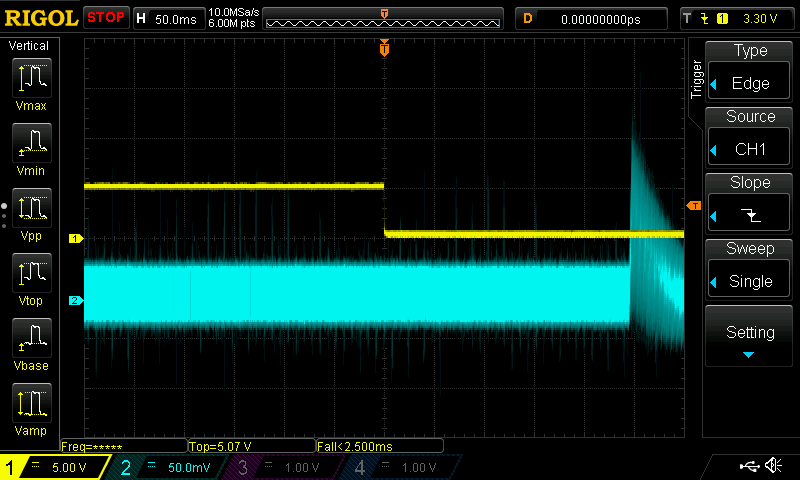

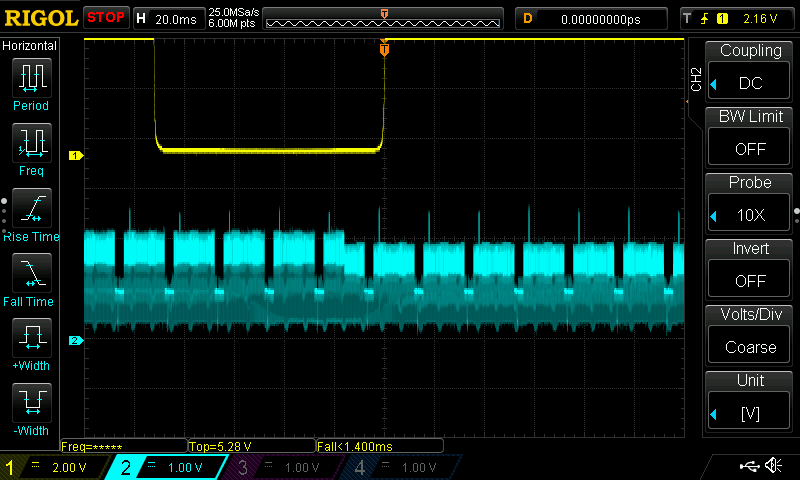

(Above) Combian Video Latency After USB Joy Button Press - 4 frames worst case	(Above) Combian Analog Audio Latency After USB Joy Button Press (200ms buffer) - 250ms

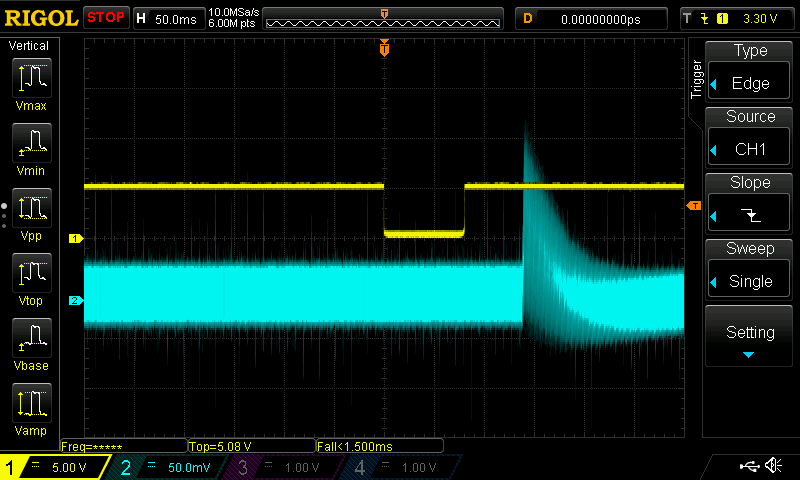

	(Above) Combian Analog Audio Latency After USB Joy Button Press (80ms buffer) - 135ms

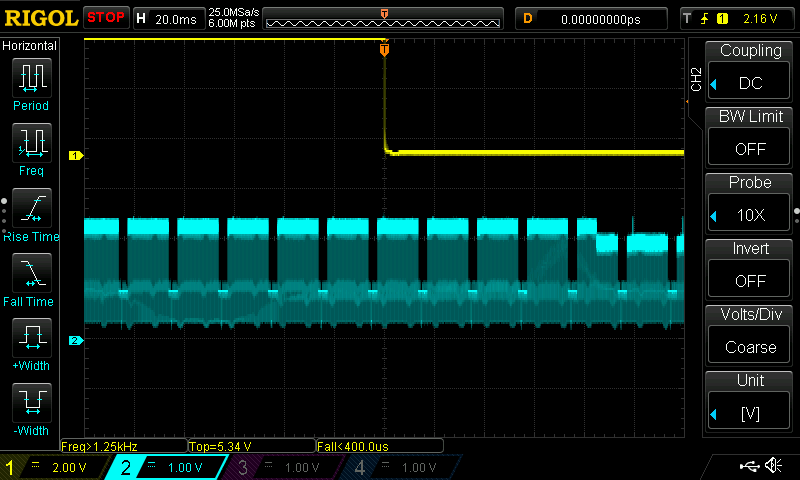

(Above) Combian Video Latency using Keyrah Joy Button Press - 4 frames worst case

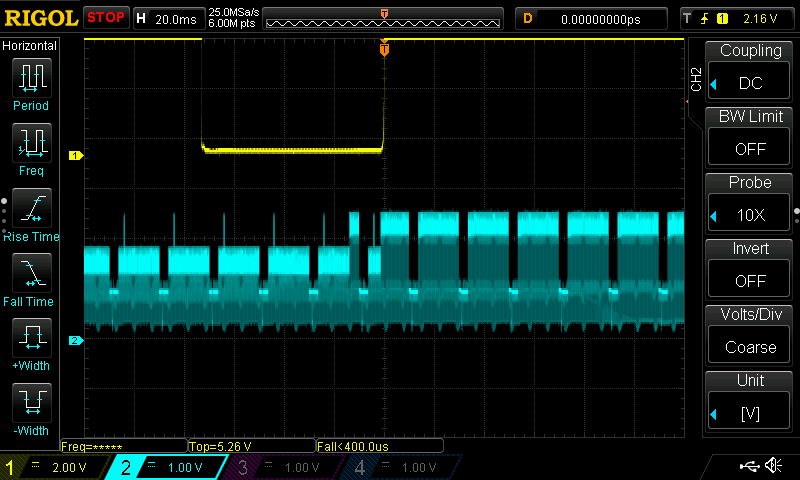

(Above) Combian Video : Bad frame, mid screen transition should never appear twice. Got this frequently on Combian and I suspect it's the result of video frames not being properly swapped on vsync which also accounts for the horizontal tearing.

* For Keyrah measurements, I used a double throw switch hooked up to both the fire button/GND pins of the DB9 connector and the oscilloscope to make the point at which the circuit is closed visible on the scope.
